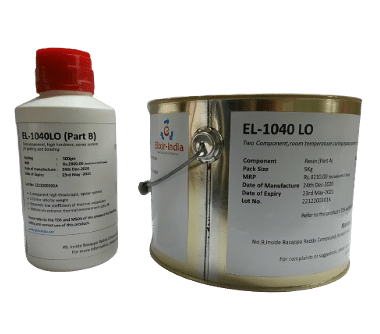

Multipurpose, high hardness epoxy system

EL-1040-LO
EL-1040-LO
Applications
  1. EL-1040LO is a an epoxy system that forms very high hardness after curing.It is used as wear resistance coating and high hardness potting compound.
Replaces boltrivetssolderingbrazing
Available pack size Kit in 10:1 ratio
Standards ASTM, RoHS, REACH

Download
TDS

Application
Tips

Specifications

Chemical Composition Epoxy
Mixing Ratio by Volume 10 : 1
Color White
Recommended substrates Metals, Ferrite, Ceramic, Glass and many plastics.
Pot Life 45 – 75 min for 100gm mix
Pot Life 45 – 75 min for 100gm mix
Full Cure time 48 – 72 hours
Max gap fill 0.1 – 3.0 mm
Shear Strength 1700 psi
Hardness 85-90 Shore D
Service Temperature -40°C +80°C<-269°C to 120°C

Features and Benefits

This product exhibits excellent low temperature resistance
Forms very high hardness post curing and is ideal for wear resistance coating.

Notes

  • This product has excelent dimensional stability and very low CTE
  • Due to its vacuum compatibility, it is used in aerospace,optical and seminconducter applications.
  • Capable of passing NASA outgassing test
