Toughened, thermally conductive epoxy

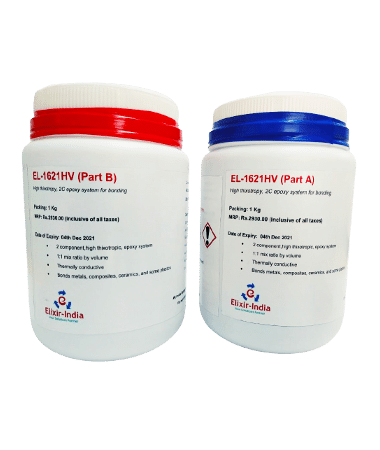

EL-1621HV
EL-1621HV
Applications
  1. EL-1621 is used for structural bonding of side panel in metro rail coaches, lighting, vacuum, optoelectronic, aerospace and related industries.
Replaces boltrivetssolderingbrazing
Available pack size 50ml,400ml,Bulk
Standards RoHS, REACH
Related Accessories
(Click image to explore more)

Download
TDS

Application
Tips

Specifications

Chemical Composition Thixotropic Epoxy
Curing Mechanism Polymerization on mixing of Part A & Part B .
Mixing Ratio by Volume 1 : 1
Color It depends upon the customer requirement.
Recommended substrates Metals , Ceremics , plastic , rubber & glass
Pot Life 15 – 25 minutes
Full Cure time At 23°C 2 to 3 days , At 90°C 1 to 2 hours
Max gap fill N/A
Shear Strength > 3300 psi
Hardness > 85 Shore D
Service Temperature -70°C to +204°C

Features and Benefits

EL-1621 HV offers remarkable toughness and superior peel strength.
Capable of passing NASA low outgassing.
Offers an extensive serviceable temperature range of -70°C to +204°C.

Notes

  • Product offers high thermal conductivity and can be used as a coating over copper pipes to increase heat dissipation.
  • This is a highly thixotropic product which makes it ideal for use on vertical surfaces where non-drip properties are desired.
