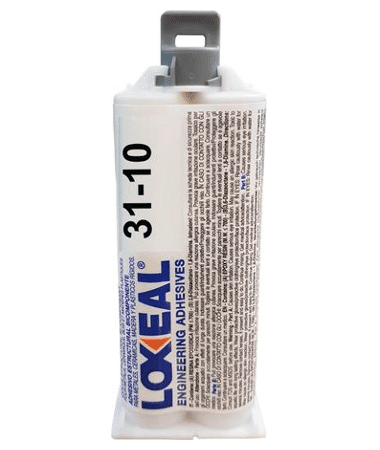

Multipurpose, slow curing, transparent epoxy

Loxeal-31-10
Loxeal-31-10
Applications
  1. Loxeal 31-10 is a slow setting general purpose epoxy adhesive used in sheet metal cladding, electronic potting and bonding of dissimilar surfaces such as ferrites, metals, ceramic, marble, glass, concrete, wood and some plastics.
Replaces boltrivetssolderingbrazing
Available pack size 50ml,400ml,Bulk
Standards ASTM, RoHS, REACH
Related Accessories
(Click image to explore more)

Download
TDS

Application
Tips

Specifications

Chemical Composition Part A: epoxy resin
Part B: amine
Curing Mechanism Polymerization mixing of resin & hardner.
Mixing Ratio by Volume 1 : 1
Color Part A : Clear/Colourless
Part B : amber
Recommended substrates Metals, Ferrite, Ceramic, Marble, Glass, Concrete and Plastic.
Pot Life 90 – 150 minutes
Functional Cure time 12 – 24 hours
Max gap fill 0.1 – 2.0 mm
Shear Strength 12- 14 N/mm²
Service Temperature -40°C +80°C

Features and Benefits

Excellent for applications requiring high mechanical resistance.
Slow setting time allows bonding of very large surfaces and part repositioning.

Notes

  • The product can withstand continuous operating temperatures upto 80°C and should not be considered for applications that can be exposed to heat beyond this.
  • Not recommended for low surface energy plastics.
