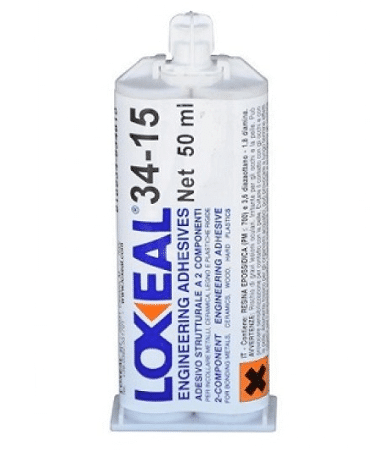

Highly flexible epoxy

Loxeal-34-15
Loxeal-34-15
Applications
  1. Loxeal 34-15 is recommended for bonding applications where high level of flexibility and stress relieving is required. Can bond metal, glass, wood, and many plastics, including cable insulations. Seal the electronic connectors.
Replaces boltrivetssolderingbrazing
Available pack size 50ml,400ml,Bulk
Standards ASTM, RoHS, REACH
Related Accessories
(Click image to explore more)

Download
TDS

Application
Tips

Specifications

Chemical Composition Part A : Epoxy resin
Part B : Amine
Curing Mechanism Polymerization mixing of resin & hardner.
Mixing Ratio by Volume 1 : 1
Color Part A : Colorless/Transparent
Part B : Amber
Recommended substrates Metals, ferrite. ceramic, marble, glass, concrete, wood & plastic.
Pot Life 15 – 35 minutes.
Full Cure time 12 – 24 hours
Max gap fill 0.1 – 2.0 mm
Shear Strength 5 – 10 N/mm²
Service Temperature -40°C +80°C

Features and Benefits

Excellent flexibility, good peel strength.
Outstanding chemical and fluid resistance, including water, motor and gas oils, cooling gas.

Notes

  • Due to its high flexibility it does not have very high shear and tensile strength hence it must not be used on applications that need structural strength.
