High strength, tough epoxy

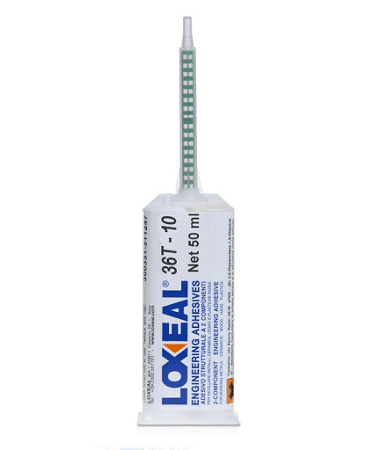

Loxeal-36T-10
Loxeal-36T-10
Applications
  1. Loxeal 36T-10 is an epoxy system used in a range of applications that include but is not limited to potting in medical equipments, structural bonding, electrical insulation and many more.
Replaces boltrivetssolderingbrazing
Available pack size 50ml,400ml,Bulk
Standards ISO,RoHS, REACH
Related Accessories
(Click image to explore more)

Download
TDS

Application
Tips

Specifications

Chemical Composition Part A: epoxy resin
Part B: amine
Curing Mechanism Polymerization on mixing of Part A & Part B .
Mixing Ratio by Volume 2 : 1
Color Part A : Clear/Colourless
Part B : amber
Recommended substrates Metals, Ferrite, Ceramic, Marble, Glass, Concrete and Plastic.
Pot Life 90 – 150 minutes
Functional Cure time 12 – 24 hours
Max gap fill 0.1 – 2.0 mm
Shear Strength 12- 14 N/mm²
Service Temperature -40°C +80°C

Features and Benefits

Very good mechanical resistance under static or dynamic loads.
High viscosity, solvent free.
Offers very high electrical insulation

Notes

  • No shrinkage after cure.
  • The product forms an elastic bond line that offers very good shock and impact resistances
