Flexible and toughened composite bonder

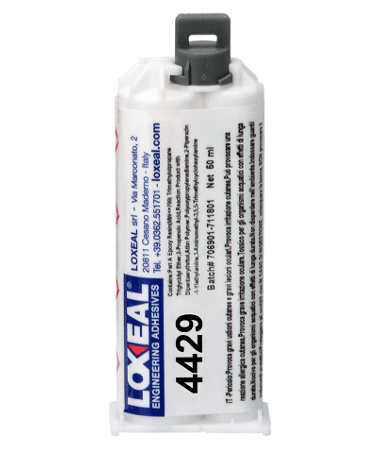

Loxeal-4429
Loxeal-4429
Applications
  1. Loxeal4429 is especially formulated for bonding in composite applications. It also provides tenacious bonding on carbon fiber, steel, aluminium and other substrates.
Replaces boltrivetssolderingbrazing
Available pack size 50ml,400ml,Bulk
Standards ISO,RoHS, REACH
Related Accessories
(Click image to explore more)

Download
TDS

Application
Tips

Specifications

Chemical Composition Part A: epoxy resin
Part B: amine
Curing Mechanism Polymerization mixing of Resin & Hardner.
Mixing Ratio by Volume 2 : 1
Color Part A : White
Part B : Black
Recommended substrates Wood, metal, ceramics, plastic.
Pot Life 150-200 minutes
Full Cure time 72 hours
Max gap fill 0.1 – 5.0 mm
Shear Strength Steel 15 -20 N/mm²
Service Temperature -40°C +80°C-40°C to +120°C (peaks up to +140°C)

Features and Benefits

Strong adhesion with high peel and shear strength
Can withstand operating temperature upto+120° with peaks of +140°C.
Toughened and semi-flexible

Notes

  • Product fully cures 72 hours after application, product testing must be performed accordingly. Alternatively it can be heat cured to achieve faster full cure with enhanced properties
