1C high temperature non-sag epoxy

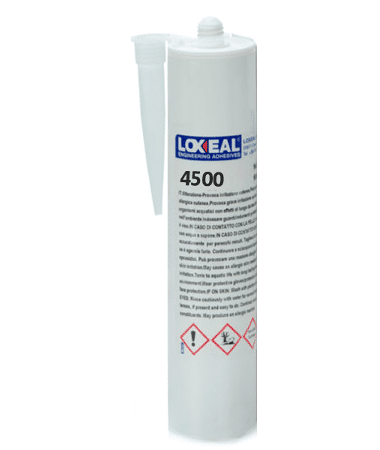

Loxeal-4500
Loxeal-4500
Applications
  1. Loxeal 4500 is used for bonding metals, ceramics, ferrites and composite materials in different applications where high bond strength and quick output is necessary. It is also used in abrasive product manufacturing.
Replaces boltrivetssolderingbrazing
Available pack size 300ml, 1Kg
Standards ASTM, RoHS, REACH
Related Accessories
(Click image to explore more)

Download
TDS

Application
Tips

Specifications

Chemical Composition Epoxy resin
Curing Mechanism It cures by heating
Color Grey
Recommended substrates Metals, Composites, Ferrites, Ceramics
Max gap fill 3 mm
Cure Schedule 1 +130°C ≥ 45 min
Cure Schedule 2 +150°C ≥ 30 min
Induction curing schedule < 3 min
Shear Strength 20-30 N/mm²
Hardness 75 – 85 Shore D
Service Temperature -40°C +180°C

Features and Benefits

Product has high viscosity for non-drip applications.It is high viscous one component epoxy that can withstand temperatures upto 180°C.
Due to non-sagging and non-drip properties it can be used on vertical surfaces.
It provides high impact, peeling and tensile strength.

Notes

  • This product can be used to replace fastening, welding and brazing as assembly methods.
  • The product can be cured faster than normal heat curing by induction heating in 10-20 seconds.
  • Always store the product refrigerated before opening the container for maximum life and best performance.
