1C epoxy self levelling and flowable while curing

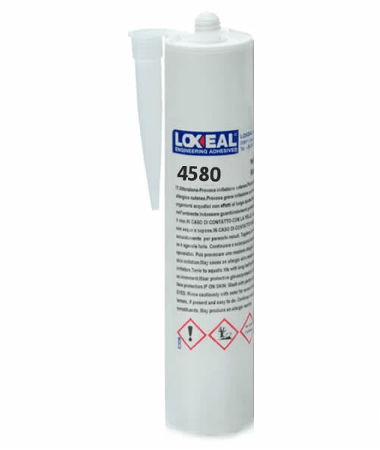

Loxeal-4580
Loxeal-4580
Applications
  1. Loxeal 4580 is used for bonding metals, ceramics, ferrites and composite materials in different applications where high bond strength and quick output is necessary. It is also used in abrasive product manufacturing.
Replaces boltrivetssolderingbrazing
Available pack size 300ml, 1Kg
Standards ISO, RoHS, REACH
Related Accessories
(Click image to explore more)

Download
TDS

Application
Tips

Specifications

Chemical Composition Epoxy resin
Curing Mechanism It cures by heating
Color Grey
Recommended substrates Metals, Ceramics, Ferrites, Composites
Max gap fill 0.5 mm
Cure Schedule 1 +130°C ≥ 60 min
Cure Schedule 2 +150°C ≥ 45 min
Induction curing schedule < 3 min
Shear Strength > 18 N/mm²
Shear Strength 15 – 25 N/mm²
Hardness 75 – 85 Shore D
Service Temperature -40°C +180°C

Features and Benefits

Loxeal 4580 fluidifies while curing giving silver like appearance. Due to this property it can also be used in sealing applications between metals.
It provides high impact, peeling and tensile strength.
It withstands temperature upto 180°C

Notes

  • This product can be used to replace fastening, welding and brazing as assembly methods

  • The product can be cured faster than normal heat curing by induction heating in less than 3 minutes
  • Always store the product refrigerated before opening the container for maximum life and best performance
  • Also offers thermal conductivity post curing
