Toughened, impact resistance

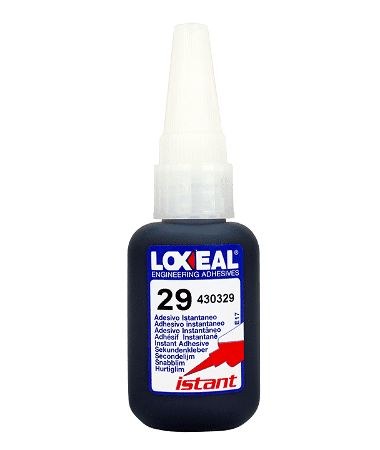

Loxeal-29
Loxeal-29
Applications
  1. Loxeal IS29 is used for bonding plastics, elastomers and metals to themselves or in combination where shock and impact load is applicable.
Replaces Solvent Bonding, Ultrasonic Welding
Available pack size 20gm, 50gm, 500gm
Standards ASTM, DIN, ISO, REACH, RoHS
Related Accessories
(Click image to explore more)		 Loxeal-Activator-9-ra Needle-holder-raLoxeal-Primer-7-rametal-nozzles-needles-for-adhesives-ra (1)

Download
TDS

Application
Tips

Specifications

Chemical Composition Ethyl Cyanoacrylate
Curing Mechanism Moisture
Color Black
Viscosity 500 – 1500 mPa s
Recommended Substrates Plastics, rubbers, small metals
Max Gap Fill 10 – 200 microns
Fixture Time (secs) ABS : 15-40, Steel : 20 – 50
Shear Strength ABS: >5, Steel: 20-30 N/mm²
Tensile Strength Steel: 18 – 25 N/mm²
Service Temperature -50°C/+80°C

Features and Benefits

High viscosity instant to fill large gaps.
Rubber toughened for increased flexibility, shock and impact resistance.
High softening point and excellent dielectric strength.

Notes

  • Loxeal IS29 is a product impregnated with rubber toughening agents for high shock and impact load.

  • It is also slow in curing, allowing part adjustment.

  • In case of too long setting time we recommend to use Loxeal Activator 9.
  • In case of bonding PP/PE/HDPE/LDPE/Silicone rubber or PTFE always use Loxeal Primer-7
