Medical grade for flexible bond joint

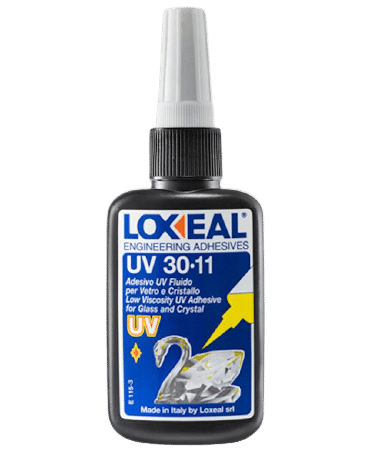

Loxeal-30-11
Loxeal-30-11
Applications
  1. It is used for bonding various plastics in medical devices.
  2. Particularly PC,ABS and PVC
Replaces Solvent Bonding, Ultrasonic Welding
Available pack size 250ml, 2litre
Standards ISO, DIN, REACH, RoHS
Related Accessories
(Click image to explore more)

Download
TDS

Application
Tips

Specifications

Chemical Composition Urethane acrylate
Curing Mechanism Polymerization on exposure to UV rays
Recommended substrates Glass/Glass ,Glass/Metal , Transparent Plastics (PC,ABS,PMMA) .
Recommended UV Waves 365 to 420 nm
Recommended Intensity 100 mW/cm²
Curing time Depends on Substrates.
Tensile Strength > 15 N/mm²
Service Temperature -55°C to 120°C

Features and Benefits

Approved for medical use according to standards of ISO 10993 from Toxicon.
Forms flexible yet tough bondline.
Has very high elongation of 100-150%

Notes

  • Provides substrate failure on most recommended susbtrates.
  • Loxeal 30-11 shows excellent performance under ETO & Gamma sterilization process
  • Some users compromise on the wavelength of UV bulb and intensity.It must be noted that for best performance wavelength must be 365-420 nm and intensity of 100mW/cm²
