Glass edge to edge bonder

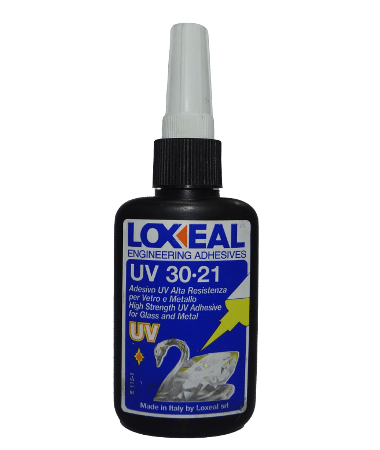

Loxeal-30-21
Loxeal-30-21
Applications
  1. Loxeal 30-21 is specially designed for bonding float glass to glass, even edge to edge, or glass to metal bonding in the manufacturing of glass and crystal furniture.
  2. Suitable for safety glass and coloured glass (partly UV radiation absorbing type).
Replaces Solvent Bonding, Ultrasonic Welding
Available pack size 50ml, 250ml, 2litre
Standards ASTM,REACH,RoHS
Related Accessories
(Click image to explore more)		 metal-nozzles-needles-for-adhesives-ra (3)Needle-holder-ra

Download
TDS

Application
Tips

Specifications

Chemical Composition Methacrylate ester
Curing Mechanism Polymerization on exposure to UV rays
Recommended substrates Glass/Glass ,Glass/Metal , Transparent Plastics
Recommended UV Waves 365 to 420 nm
Recommended Intensity 100mW/cm²
Curing time 8-15 seconds
Tensile Strength 10-14 N/mm²
Service Temperature -55°C to 120°C

Features and Benefits

High temperature performance (120°C)
High gap filling upto 1.5mm
Very high strength on glass.Substrate failure

Notes

  • For best results UV rays must have wavelength in range of 365-420 nm and light intensity of 100mW/cm².
  • Curing time depends is adhesive film thickness dependent hence must be factored in.
  • Do not try to cure under sunlight. It can only partly cure the product severely affecting its performance.
