Glass and metal bonder

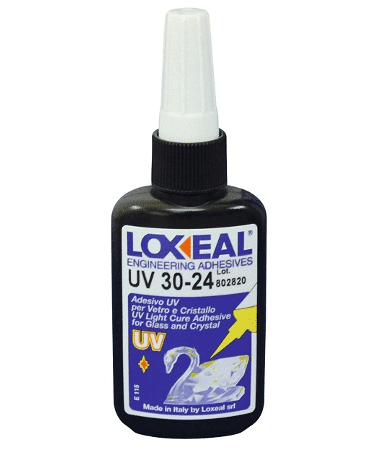

Loxeal-30-24
Loxeal-30-24
Applications
  1. Loxeal 30-24 is specially formulated for glass to glass or glass to metal bonding. For its good optical clarity is ideal for bonding of precious crystals
Replaces Solvent Bonding, Ultrasonic Welding
Available pack size 250ml
Standards ASTM, REACH, RoHS
Related Accessories
(Click image to explore more)

Download
TDS

Application
Tips

Specifications

Chemical Composition Methacrylate ester
Curing Mechanism Polymerization on exposure to UV rays
Recommended substrates Glass/Glass ,Glass/Metal , Transparent Plastics
Recommended UV Waves 365 to 420 nm
Recommended Intensity 100mW/cm²
Curing time 8-15 seconds
Tensile Strength 12 – 16 N/mm²
Service Temperature -55°C to 120°C

Features and Benefits

The product is colourless and provides fully transparent bondlines.
Medium curing speed.
High viscosity
High operating temperature (120°C).

Notes

  • For best results UV rays must have wavelength in range of 365-420 nm and light intensity of 100mW/cm².
  • Curing time depends is adhesive film thickness dependent hence must be factored in.
  • Do not try to cure under sunlight. It can only partly cure the product severely affecting its performance.
