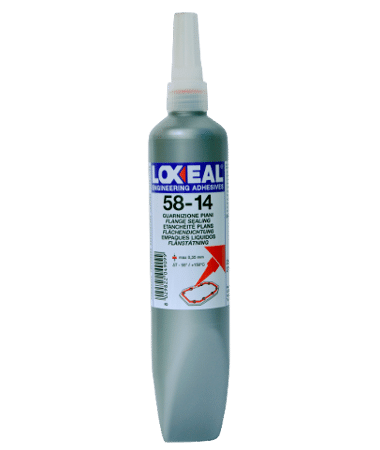

Medium strength, general purpose liquid gasket

Loxeal-58-14
Loxeal-58-14
Applications
  1. As a general purpose gasket and flange sealant on machined surfaces.
  2. Particularly well known for high performance on industrial gearbox, centrifugal pumps and earth moving equipments.
Replaces metal-gasketpaper-gasketPTFE rubber-gasket
Available pack size 75ml, 250ml
Standards ASTM, RoHS, REACH
Related Accessories
(Click image to explore more)

Download
TDS

Applications

Application
Tips

Specifications

Chemical Composition Anaerobic Methacrylate
Curing Mechanism Anaerobic
Color Orange
Recommended Substrates ferrous and non ferrous metals
Max Gap Fill 0.50 mm
Handling Cure Time 15-30 minutes
Functional Cure Time 3-6 hours
Shear Strength 5-10 N/mm2
Tensile Strength 5-8 N/mm2
Impact Strength 3-5 KJ/m2
Service Temperature -55° C to +150° C

Features and Benefits

Medium strength liquid gasket
Fluorescence effect for quality control

Notes

  • Is thixotropic for easy application on wide range of gasketing applications.
  • Due to its high gap filling capability,it has been found to work well as sealant on high tolerance thread joints.

Applications

Flange sealing of BLDC Motor Casing in electric bikes

  • Loxeal 58-14 is uniquely formulated to be used on aluminum and other metal substrates
  • Loxeal 58-14 being thixotropic anaerobic sealant forms superior sealing between flanges of BLDC motor casing in bikes
  • It passes IP68 sealing standards and provides long service life under constant vibration and impact forces.

IP67 compliant BLDC Motor cover sealing with Loxeal 58-14 anaerobic liquid gasket

Loxeal 58-14 is a medium strength, easy to service flange sealant for machined surfaces. In this video the product is being applied to an IP67 grade BLDC motor cover
