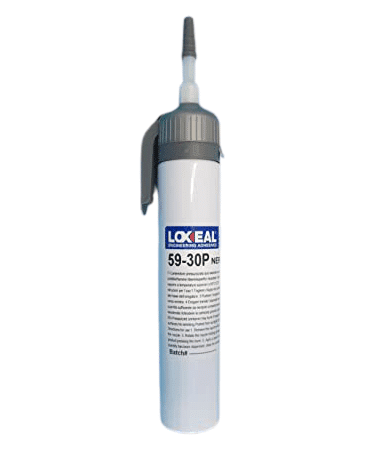

High temperature RTV gasket in self dispensing cartridge

Loxeal-59-30P
Loxeal-59-30P
Applications
  1.  As a high temperature gasket and flange sealant on machined & sheet metal surfaces.
  2. Particularly well known for high performance in compressor flanges, slewing drives, motor,hot fluid pipes, submersible pumps and gas stoves.
Replaces metal-gasketpaper-gasketPTFE rubber-gasket
Available pack size 200 ml
Standards ASTM,RoHS, REACH
Related Accessories
(Click image to explore more)

Download
TDS

Application
Tips

Specifications

Chemical Composition Silicon Acetic curing
Curing Mechanism moisture cure
Color Black/Red
Recommended Substrates most surfaces
Max Gap Fill 6 mm
Tack Free Time 10-20 minutes
Elongation at Break 300% to 600%
Hardness 32(+/-)5 Shore A
Tensile Strength 0.5 -1.0 MPa
Prevailing Torque 2.5MPa
Service Temperature -60°C to +250°C-peaks +300°C

Features and Benefits

Can resist very high operating temperature up to 250°C with peaks of 300°C
Available in 200ml self dispensing pressurised cartridge.

Notes

  • Due to its high temperature performance it is used for bonding and sealing of glass top in gas stoves.
  • Thanks to its unique pressurised cartridge packaging it provides quick and accurate application for an instant seal and avoid product loss. Also does not need additional hand held dispenser.
