Very fast curing, high strength retaining compound

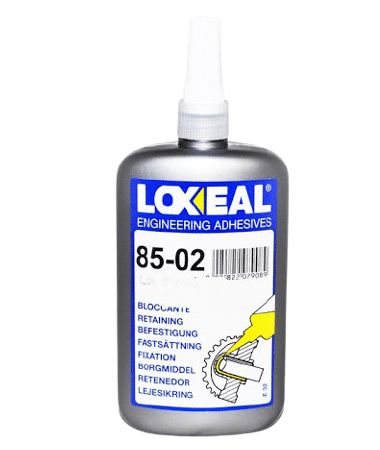

Loxeal-85-02
Loxeal-85-02
Applications
  1. Retaining of loose fitted parts such as shafts, bushes, pulleys, rotors, gun metal bush to casting in submersible pumps and other cylindrical parts.
Replaces
Available pack size 50ml, 250ml
Standards ISO, RoHS, REACH
Related Accessories
(Click image to explore more)

Download
TDS

Application
Tips

Specifications

Chemical Composition Anaerobic Methacrylate
Curing Mechanism In absence of air and presence of metal ions
Color Green
Recommended Substrates All metals (Ferrous and Non-Ferrous)
Max Gap Fill 0.02 mm
Handling Cure Time Steel: 1 – 4 minutes
Functional Cure Time 1-3 hours
Shear Strength 25-30 N/mm2
Breakaway Torque 30-40 Nm
Prevailing Torque 55-70 Nm
Service Temperature -55° C to +175° C

Features and Benefits

Very fast setting,<4min handling time
High viscosity for loose fitted parts (<0.25mm diametrical clearance)
High operating temperature (175°C), retains 60-70% of its original strength at 150°C
Fluorescence effect for quality check

Notes

  • This is a very high strength product formulated to be used on loose fitted parts with diametrical clearance less than 0.25mm
  • The product achieves its handling strength rapidly in less than 4min and assembly time must be planned accordingly.
