High strength retaining compound

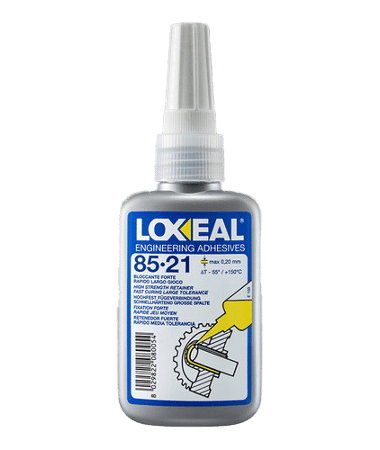

Loxeal-85-21
Loxeal-85-21
Applications
  1.  Retaining of slip fitted parts such as shafts, bushes, pulleys, rotors, gun metal bush to casting in submersible pumps and other cylindrical parts.
Replaces
Available pack size 50ml, 250ml
Standards GAZ DE FRANCE
Related Accessories
(Click image to explore more)

Download
TDS

Application
Tips

Specifications

Chemical Composition Methacrylate Resin
Curing Mechanism In absence of air and presence of metal ions
Color Green
Recommended Substrates All metals (Ferrous and Non-Ferrous)
Max Gap Fill 0.20 mm
Handling Cure Time 2-5min
Functional Cure Time 1-3 hours
Shear Strength 25-35 N/mm²
Service Temperature (-55°C) to 150°C

Features and Benefits

It allows large machining tolerances
Excellent hot strength performance

Notes

  • While using on non-ferrous or inactive metals, first prime the substrate with Loxeal Activator-11 for maximum performance
  • Can be easily automated/semi-automated through our dosing systems
