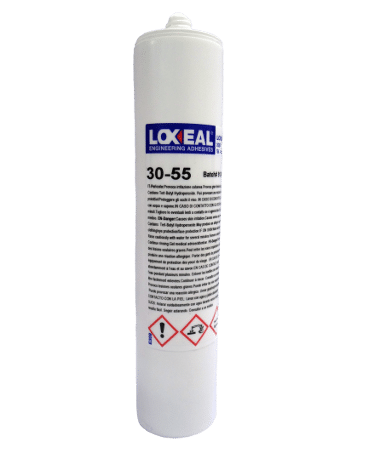

Fast curing, multipurpose structural acrylic adhesive

Loxeal-30-55
Loxeal-30-55
Applications
  1. Structural bonding of wear plates to machine beds
  2. Magnet bonding in DC motors
  3. Name plate bonding in CNC machines, hydraulic valves, fuel transfer system, centrifugal pumps, submersible pumps, ceramic bonding, gear box and other machines.
Replaces boltrivetssolderingbrazing
Available pack size 300ml, 2xcart 65ml(+Att20ml)
Standards ASTM,ISO,REACH,RoHS
Related Accessories
(Click image to explore more)

Download
TDS

Application
Tips

Specifications

Chemical Composition Modified acrylic
Curing Mechanism It cures with Activator 20
Color Amber
Mixing ratio by volume 100:10 not critical
Recommended substrates Metals, Ceramics, Ferrite, & some Thermoplastics
Maximum gap fill 0.05 mm to 0.50 mm
Handling cure time 1-4 minutes
Functional Cure Time 30 – 60 min
Tensile Strength 15-25 N/mm²
Shear Strength 15-25 N/mm²
Peel Strength 3.5-5 N/25mm
Impact Strength 15-25 KJ/m²
Service Temperature -40°C+120°C

Features and Benefits

Cures in few minutes at room temperature
Tough structural adhesive with high peel and impact resistance
High tensile strength, excellent flexibility

Notes

  • Can be cured when in contact with Loxeal Activator-20 or by heating as specified in TDS
  • Excellent hot strength performance upto 177°C
  • Best result is obtained when surface gap is about 0.05mm
