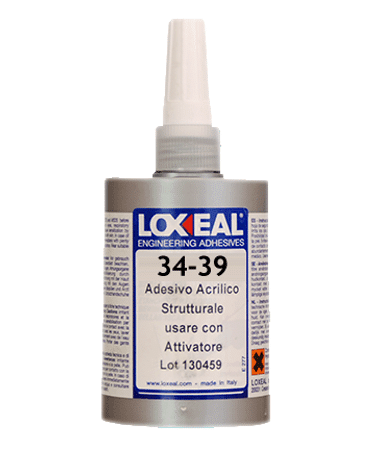

Low viscosity rapid cure structural acrylic adhesive

Loxeal-34-39
Loxeal-34-39
Applications
  1. Structural bonding of wear plates to machine beds.
  2. Magnet bonding in DC motors
  3. Name plate bonding in CNC machines, hydraulic valves, fuel transfer system, centrifugal pumps, submersible pumps, gear box, ceramic bonding and other machines.
Replaces bolt rivets soldering brazing
Available pack size 300ml, 2xcart 65ml(+Att20ml)
Standards ASTM,ISO,REACH,RoHS
Related Accessories
(Click image to explore more)		 Luer-Lock-ra (1) MIXPAC-DMA-DMB-ra metal-nozzles-needles-for-adhesives-ra (2) Adhesive-sealant-accessories-nozzles-adapter-ra

Download
TDS

Application
Tips

Specifications

Chemical Composition Urethane methacrylate
Curing Mechanism It cures with Activator 20
Color Transparent
Mixing ratio by volume No mixing Required
Recommended substrates Metals, Ceramics, Ferrites.
Maximum gap fill 0.05 to 0.20 mm
Handling cure time 20-50 seconds
Functional Cure Time 10-20 Minutes
Tensile Strength 15-25 N/mm²
Shear Strength 20-30 N/mm²
Peel Strength 85-100 N/25 mm
Impact Strength 18-28 KJ/m²
Service Temperature -55°C+165°C

Features and Benefits

Low viscous/fluid
Cures in few minutes at room temperature
Toughened
Good tensile and shear strength

Notes

  • Loxeal 34-39 cures when it comes into contact with Loxeal Activator 20,21 of 22. Apply Loxeal34-39 on one surface and Activator on other surface and press the parts together.
  • Best result is obtained when surface gap is about 0.05mm
  • Presence of rough surface or undulations on the parts can affect bonding strength significantly.
