Medium Strength, for stud locking

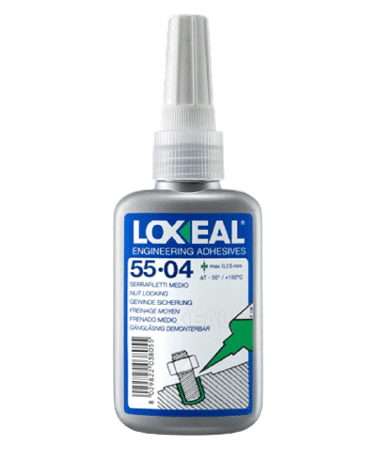

Loxeal-55-04
Loxeal-55-04
Applications
  1.  Locking and sealing of fasteners in machines and equipments such as CNC machines, pumps, valves, switch gears, flow control equipments, chillers and many more.
  2. Locking grub screws and keyways to avoid backlash.
Replaces
Available pack size 50ml, 250ml
Standards ISO, RoHS, REACH
Related Accessories
(Click image to explore more)

Download
TDS

Application
Tips

Specifications

Chemical Composition Anaerobic Methacrylate
Curing Mechanism In absence of air and presence of metal ions
Color Red
Recommended Substrates All metals (Ferrous and Non-Ferrous)
Max Gap Fill 0.25 mm
Handling Cure Time 10-15 minutes
Functional Cure Time 1-3 hours
Shear Strength 10-15 N/mm2
Breakaway Torque 20-25 Nm
Prevailing Torque 40-50 Nm
Service Temperature -55° C to +150° C

Features and Benefits

Medium strength threadlocker for easy disassembly
High prevailing torque. Retains high strength even after film breakage.
Medium Thixotropy
Fluorescence effect for quality control

Notes

  • Due to its high prevailing torque it is a right choice of threadlocker for large diameter nuts and studs.
  • Good thermal resistant, hot strength and heat aging.
