High strength, suitable on oily surfaces.

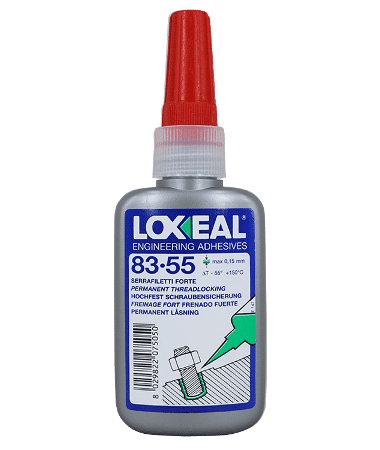

Loxeal-83-55
Loxeal-83-55
Applications
  1.  High strength Locking of studs, nuts and bolts in machines and equipment.
  2. Is particularly useful in Shock absorbers, Gearbox, Transmission, CNC machines, Tractors, Earth moving equipments and similar dynamic machines
Replaces
Available pack size 50ml, 250ml
Standards ISO, REACH, RoHS
Related Accessories
(Click image to explore more)

Download
TDS

Application
Tips

Specifications

Chemical Composition Anaerobic Methacrylate
Curing Mechanism In absence of air and presence of metal ions
Color Red
Recommended Substrates All metals (Ferrous and Non-Ferrous)
Max Gap Fill 0.15 mm
Handling Cure Time 10-20 minutes
Functional Cure Time 1-3 hours
Shear Strength 15-20N/mm2
Breakaway Torque 25-35 Nm
Prevailing Torque 50-65 Nm
Service Temperature -55° C to +150° C

Features and Benefits

High strength Threadlocker
Is oil tolerant
Low viscous
Fluorescence effect for quality control

Notes

  • Probably the only known high strength oil tolerant Threadlocker in the industry.
  • Has been particularly useful in piston assembly of automobile shock absorbers due to its high strength and durability.
  • Disassembly may require the bolt/stud/nut to be heated to about 250°C due to its high strength.
