High strength, thixotropic Threadlocker

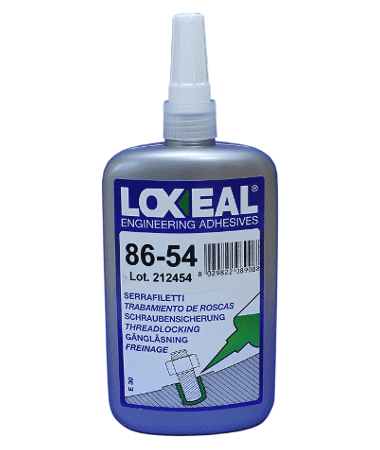

Loxeal-86-54
Loxeal-86-54
Applications
  1.  Locking and sealing of fasteners in machines and equipment.
  2. Locking grub screws and keyways to avoid backlash.
  3. Prevent corrosion in the assembled fasteners.
Replaces
Available pack size 50ml, 250ml
Standards ISO,REACH,RoHS
Related Accessories
(Click image to explore more)

Download
TDS

Application
Tips

Specifications

Chemical Composition Anaerobic Methacrylate
Curing Mechanism In absence of air and presence of metal ions
Color Green
Recommended Substrates All metals (Ferrous and Non-Ferrous)
Max Gap Fill 0.30 mm
Handling Cure Time 15-30 minutes
Functional Cure Time 3-6 hours
Shear Strength 15-25 N/mm2
Breakaway Torque 40-50 Nm
Prevailing Torque 45-55 Nm
Service Temperature -55° C to +150° C

Features and Benefits

Recommended for permanent locking of fasteners.
Thixotropic for allowing machining tolerances

Notes

  • Excellent for assemblies in compressors, pumps, valves, gearbox, machine tools, chillers, switch gears, hinge screws, furniture any many many more
  • While using on non-ferrous or inactive metals, first prime the substrate with Loxeal Activator-11 for maximum performance
  • Often only a drop is enough to provide correct level of locking. Optimize the consumption with Elixir’s accessories and dispensing nozzles
  • Can be easily automated/semi-automated through our dosing systems
