Low viscous for fine hydraulic and pneumatic fittings

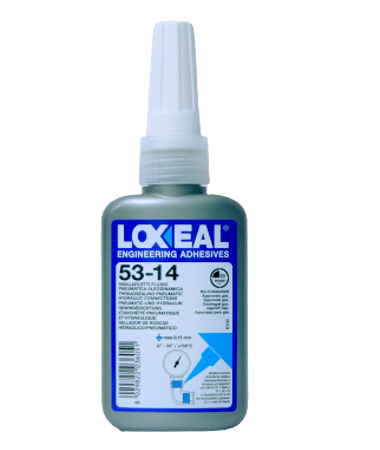

Loxeal-53-14
Loxeal-53-14
Applications
  1.  As a threadsealant in equipment and machineries to prevent leakage against pressure.
  2. Sealing of pipe fittings and piping in CNC machines, compressors, pumps, valves, chillers, gear box, hydraulic press, automobile and general plumbing applications.
Replaces Dowty-SealO-RingHemp
Available pack size 50ml, 250ml
Standards EN 751-1 (DIN-DVGW NG-5146AU0038),RoHS, REACH
Related Accessories
(Click image to explore more)

Download
TDS

Application
Tips

Specifications

Chemical Composition Anaerobic Methacrylate
Curing Mechanism In absence of air and presence of metal ions
Color Brown
Recommended Substrates All metals (Ferrous and Non-Ferrous)
Max Gap Fill 0.15 mm
Handling Cure Time 10-20 minutes
Functional Cure Time 1-3 hours
Shear Strength 8-12 N/mm2
Breakaway Torque 12-8 Nm
Prevailing Torque 10-20 Nm
Service Temperature -55° C to +150° C

Features and Benefits

Low viscous threadsealant.
Medium strength product resists vibrations and shocks.
Fluorescence effect for quality check

Notes

  • Particularly works well on fine hydraulic and pneumatic fittings.
  • Provides excellent resistance against common industrial fluids.
  • Is not recommended to be used on coarse fittings.
